제 26회 반도체 대전 SEDEX 2024
October 23 ~ 25 / COEX SEOUL
AXEL Co., Ltd.
Booth No.D3011. 산화갈륨 (Ga2O3) 단결정
- 차세대 와이드 밴드갭(WBG, Wide Band Gap) 반도체 물질
- 4.8eV의 큰 밴드갭으로 인해 높은 항복전압이 요구되는 전력전자 응용 분야에서 활용
응용 범위 :
- 전력 변환기, 모터 드라이브, 인버터와 같은 전력 전자 장치의 고전압, 고출력 응용에 효과적
2. 불화칼슘 (CaF2) 단결정
- 자외선에서 적외선 영역까지 넓은 파장 범위에서 우수한 투과도를 갖는 광학재료
- CaF2 단결정을 성장시키는 방법에는 Bridgman Stockbarger법, Verneuil법, EFG법 등이 있으며 그 중 대표적으로 초크랄스키(Czochralski) 방법이 이용되고 높은 생산효율과 큰 결정을 만들 수 있음
응용 범위 :
- 분석 장비 / 천문학 망원경 / 열 이미지 시스템 등과 같은 다양한 광학 윈도우, 프리즘, 렌즈

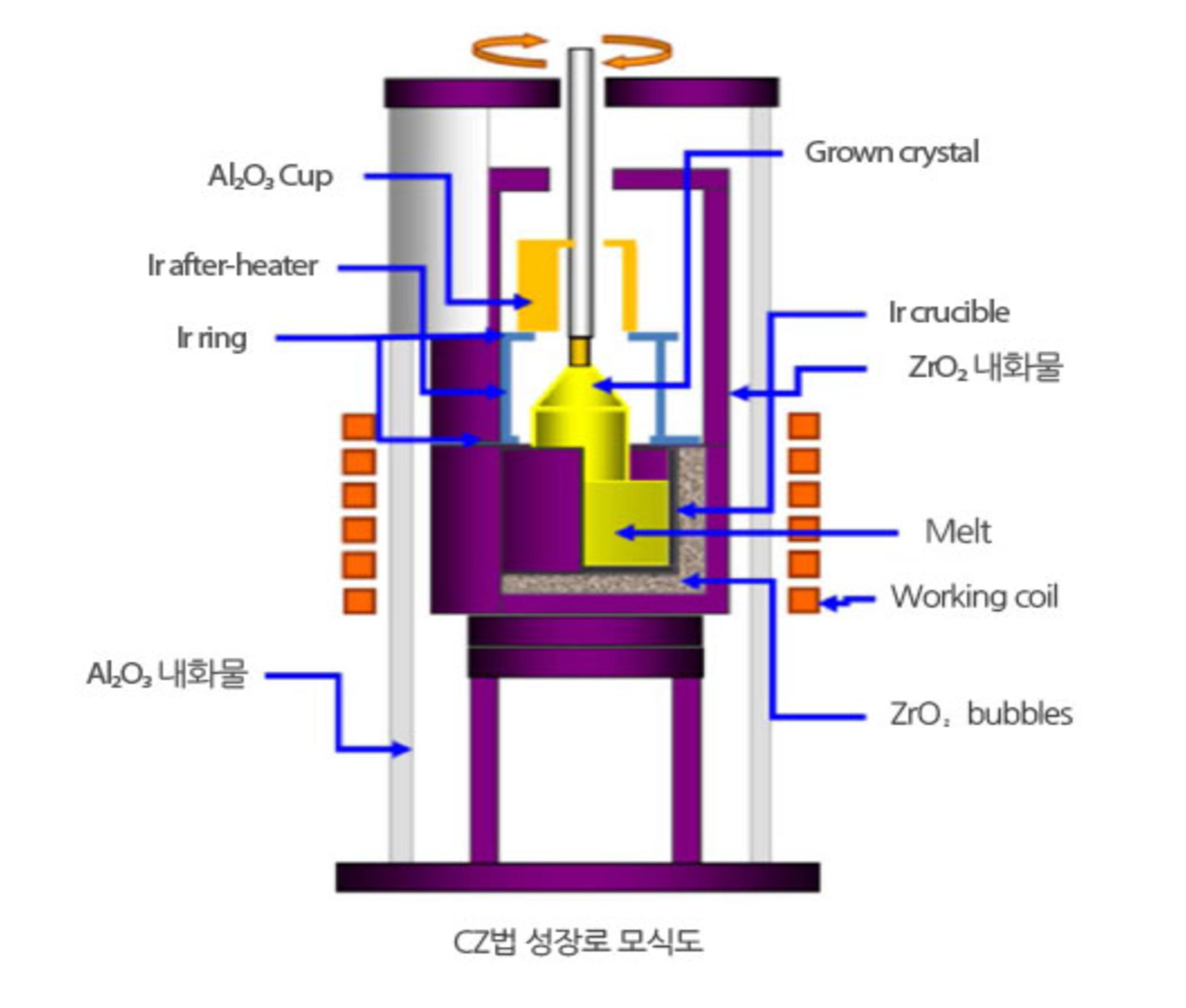

3. Czochralski Method
- RF coil에 의해 형성되는 전자기장에 의해 원료를 용융 시키는 방법으로 단결정 성장 공정에서 Seed를 회전시켜 단결정 Ingot의 형상을 균일하게 제어 가능
핵심 기술 :
- 성장로 내 온도구배 제어 기술 / 용융물, 불순물 농도 제어 기술 / 회전&인상속도 제어 기술
4. EFG (Edge-defined Film-fed Growth)
- Czochralski법을 응용한 기술로, Iridium 도가니에 원료를 용융하고 도가니 내부에 설치된 die에 젖어 올라온 융액으로부터 형태를 제어하여 특정한 형태의 결정을 인상하면서 성장시키는 방법
핵심 기술 :
- 핫존 설계 기술 / 온도구배 제어 기술 / 용융물, 불순물 농도 제어 기술 / 인상속도 제어 기술 / Die 구조에 따른 결정 스트레스 제어 기술
1. Gallium oxide (Ga2O3) single crystal
- Next-generation wide band gap (WBG, Wide Band Gap) semiconductor material
- Utilized in power electronics applications requiring high breakdown voltage due to the large band gap of 4.8 eV
Application :
- Effective for high voltage, high output applications of power electronics such as power converters, motor drives, and inverters
2. Calcium fluoride (CaF2) single crystal
- Optical material with excellent transmittance over a wide wavelength range from ultraviolet to infrared
- There are Bridgman Stockbarger method, Verneuil method, EFG method, etc. for growing CaF2 single crystals, and among them, Czochralski method is the most representative method, which can produce high production efficiency and large crystals
Application :
- Analysis equipment / Astronomy telescopes / Various optical windows, prisms, and lenses such as thermal imaging systems
3. Czochralski Method
- A method of melting raw materials by an electromagnetic field formed by an RF coil, which allows for uniform control of the shape of a single crystal ingot by rotating the seed in the single crystal growth process
Key technologies :
- Temperature gradient control technology in the growth furnace / Melt and impurity concentration control technology / Rotation & lifting speed control technology
4. EFG (Edge-Defined Film-Fed Growth)
- A technology that applies the Czochralski method, melting raw materials in an Iridium crucible and controlling the shape of the melt that rises up through the die installed inside the crucible to grow a crystal of a specific shape while pulling it up
Key technologies :
- Hot zone design technology / Temperature gradient control technology / Melt and impurity concentration control technology / Pulling speed control technology / Crystal stress control technology according to die structure
저희 악셀은 세라믹 단결정을 개발하여 제조 및 판매하는 벤처기업입니다.
2012년 6월 창립이래 “단결정 성장기술”을 핵심기술로 하여 고체레이저 및 신틸레이터, 의료바이오용, 국방용, 산업용으로 사용할 수 있는 단결정 제품을 개발하고, 상품화하여 국산화에도 기여하고자 합니다.
국내 유일의 단결정 회사에서 세계화를 통해 세계 기업들과 어깨를 나란히 할 수 있는 글로벌회사로 성장하기 위해 기술력을 강화하고 지속적인 혁신을 추구하겠습니다.
최근 개발하고 있는 Ga2O3 단결정은 차세대 산업인 전기자동차, 항공우주산업, Home Application에 사용되는 전력반도체 소재로 사용될 전망입니다. 또한 개발되고있는 CaF2 단결정은 광범위한 투과도를 갖는 우수한 광학재료로써 넓은 응용처에 사용될 전망입니다.
기술을 중시하고, 기술개발에 대한 보상체계를 제도화하여 기술인력을 양성하는데 역량을 집중하고 있으며, 국내 유일의 단결정 회사, 글로벌회사로 성장하기 위해 기술력을 강화하고 지속적인 혁신을 추구하여 최고의 가치를 구현하는 기업으로 성장할 것입니다.
AXEL Co., Ltd. is a venture company that develops, manufactures, and sells ceramic single crystals. Since its foundation in June 2012, AXEL Co., Ltd. has focused on contributing to the localization of single crystal materials by developing and commercializing single crystal products used in solid laser and scintillator, medical bio application, defense and industrial fields based on the core capabilities of "single crystal growth technology".
As the only single crystal company in Korea, it pursues innovation to compete with global companies through continuous research and development and technology enhancement.
The Ga2O3 single crystal currently under development is expected to be used as a power semiconductor material for next-generation industries such as electric vehicles, aerospace, and home applications. In addition, the CaF2 single crystal currently under development is expected to be used as an excellent optical material with a wide range of transmittance and has a wide range of applications.
We are focusing our capabilities on fostering technical personnel by emphasizing technology and institutionalizing a compensation system for technology development, and we will grow into a company that realizes the best value by strengthening our technological capabilities and pursuing continuous innovation to grow into the only single crystal company in Korea and a global company.
